Garmin GMR™ 1204 xHD Open Array Radar and Pedestal


Garmin GMR™ 1204 xHD Open Array Radar and Pedestal

Part Number: K10-00012-04
GMR™ 1204 xHD Open Array Radar and PedestalGMR™ 1204 xHD Open Array Radar and Pedestal

With the GMR 1204 xHD open-array radar on your vessel, you’ll get a better view of the open waters around you. This powerful radar offers high-definition digital technology for superior target detection and image resolution. And with 12 kW of power, the 4 ft (1.22 m) GMR 1204 xHD will bring more detail and focus to your onboard marine network.

More Power for Better Data

The GMR 1204 xHD is a 4 ft scanner with 1.8 degree beamwidth and selectable 24/48 RPM rotation speeds. This high-performance radar comes standard with 12 kW of power behind you so you'll have a more accurate picture on your surroundings. The GMR 1204 xHD also features high-definition technology so you’ll get up to 8 times more sampling data compared to our standard radar. With it, you'll get faster information acquisition and improved detection on small targets at a longer range.

Integrate With Ease

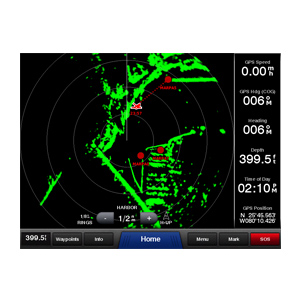

The GMR 1204 xHD is easily added to your existing Garmin Marine Network. Once connected to the network, any network-compatible Garmin chartplotter can double as your radar screen. And as an aid to location-awareness, you can overlay the GMR 1204 xHD radar image on the chartplotter's map page. You also can split the on-screen display so you can simultaneously view the map and standard radar or you can use the Dual Range feature to view close and distant targets on compatible 4000 and 5000-series chartplotters.


Physical & Performance

Physical dimensions

4' array: 51.5" x 5" x 5.25" (130.8 x 12.7 x 13.3 cm)

pedestal: 20.5" x 12.75" x 12.5" (52 x 32.4 x 31.8 cm)


array: 12.2 lb (5.5 kg)

pedestal: 45.9 lb (20.8 kg)

Water rating IPX6
Rotation speed (RPM) 24 and 48 rpm
Transmit power 12 kW
Power input 20 - 40 V DC
Beam width 1.8° horizontal, 25° vertical
Maximum range 72 nm
Minimum range 20 meters
Radar type Open-Array
Power consumption 65 W typical; 155 W max
Antenna length 48" (121.92 cm)

Features & Benefits

High definition (outstanding target separation with less screen clutter) Yes
MARPA target tracking (collision avoidance) Yes (Requires Heading Sensor, Sold Separately)
Guard zone alarm Yes
Color 8 bit
Radar overlay support Yes
Dual range support Yes
Timed Transmit Yes
No Transmit Zone Yes
